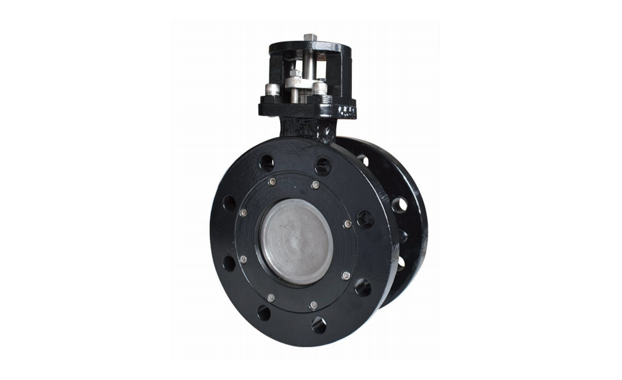

C42 series high performance double eccentric flange butterfly valve
Product category:Butterfly valve
Technical Specifications

Nominal diameter: DN50-DN1500
Pressure standard: PN10-PN64
Applicable temperature: - 25 C to 200 C
Structure length: EN593 API 609 BS5155 MSS SP-67
GB/T 12221 J3 Series
ISO 5752 Short, series 16
Testing according to BS5155 EN 12266-1 ISO5208 API 598 standard
Valve flange standard: ASME B16.5; ASME B16.47;
EN 1092-1; ISO 7005; ASME B16.25
Applications: Water treatment, petrochemical, energy, municipal, shipbuilding, iron and steel industry, chemical industry, gas, flue gas nicotine desulfurization, denitrification
Driving modes: manual, coil, electric, pneumatic, hydraulic, electro-hydraulic linkage, etc.
Valve body material: carbon steel, stainless steel, aluminum bronze, 20 alloy, Monel, etc.
Valve plate material: carbon steel, stainless steel, etc.
Stem Material: Stainless Steel
Seat Material: PTFE, RPTFE, PEEK, PPL

For detailed dimensions and parameters, please contact us or your local dealer.
