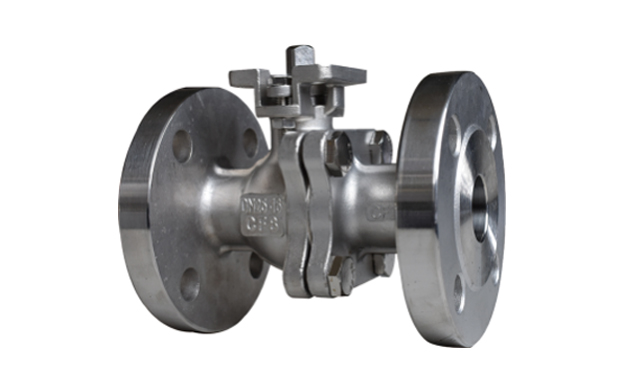

C80 Ball valve
Product category:Ball valve
Technical Specifications

C80 series flanged ball valves adopt floating ball, which can reduce operating torque. Extend the service life. Large size standard valves provide a fixed spherical design. This kind of strong and durable ball valve is specially designed for industrial applications. Such as water, steam, oil products, liquefied gas, natural gas, gas and corrosive media, etc.
Fire-proof type - certified by APl607 4th Edition
Firm connection valves provide a firm installation platform. It is easy to install actuators. All valve platforms below 50mm are designed in accordance with IS0521l standard.
Nominal diameter: 1/2"-12", DN15-DN300
Pressure standard: 150LB-1500LB, PN10-PN100
Material: Carbon steel, stainless steel, duplex steel, Inko nickel, Monel, and other special materials.
Seat selection: A large number of different seat materials can be provided to meet different needs.
Applicable temperature: - 25 C to 200 C
Test Standard: API 6D, Level 6 Leakage
Driving modes: manual, coil, electric, pneumatic, hydraulic, electro-hydraulic linkage, etc.

For detailed dimensions and parameters, please contact us or your local dealer.
